PCB Material Search

Data compiled from pcbdirectory.com

Selected Filters

Reset All
  • Type: Halogen-free
  • Filters

    Material Type

    Loss Tangent (Df)

    Apply

    Dielectric Constant (Dk)

    Apply

    Decomposition Temperature (Td)

    Apply

    Glass Transition Temperature (Tg)

    Apply

    UL Compliant

    RoHS Compliant

    Product Image

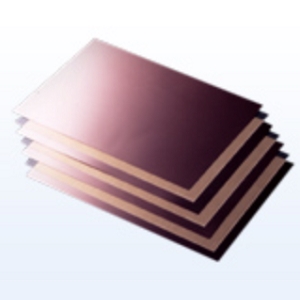

    Panasonic Corporation - R-1566

    • Type: Halogen-Free
    • Dk: 4.6
    • Df: 0.01
    • Tg: 148 ˚C
    • Frequency: 0 to 1 GHz
    • Halogen Free: yes
    • Cte xy: 11, 13 ppm/˚C
    more info
    Product Image

    ITEQ Corporation - IT‐8338G

    • Type: Halogen-free
    • Td: 425 ˚C
    • Tg: 175 to 206 ˚C
    • UL: Yes
    • Halogen Free: Yes
    • Applications: Base Stations, Power amplifiers
    • Cte xy: 22.2/22.5 ppm/˚C
    more info
    Product Image

    Elite Material Co.,Ltd - EM-370(D)-15

    • Type: Halogen-free
    • Dk: 4.0 to 4.1
    • Df: 0.011 to 0.015
    • Td: 385 ˚C
    • Tg: 175 to 195 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

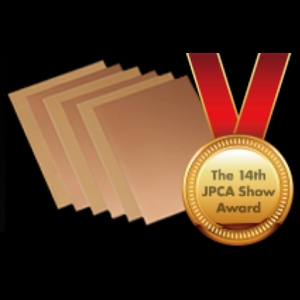

    Panasonic Corporation - R-5515

    • Type: Halogen-Free
    • Dk: 3
    • Df: 0.002
    • Td: 410 ˚C
    • Tg: 200 ˚C
    • Frequency: 0 to 10 GHz
    • Halogen Free: yes
    more info
    Product Image

    Elite Material Co.,Ltd - EM-355B(D)

    • Type: Halogen-free
    • Dk: 0 to 3.4
    • Df: 0 to 0.013
    • Td: 385 ˚C
    • Tg: 150 to 175 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

    Kingboard Holdings Limited - KB-6167GLD

    • Type: Halogen-Free
    • Td: 340 ˚C
    • Tg: 200 ˚C
    • Frequency: 0.1 to 1 GHz
    • UL: yes
    • Lead Free: yes
    • Halogen Free: yes
    more info
    Product Image

    Elite Material Co.,Ltd - EM-828G

    • Type: Halogen-free
    • Dk: 3.8 to 3.9
    • Df: 0.008 to 0.011
    • Td: 380 ˚C
    • Tg: 170 to 190 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

    Elite Material Co.,Ltd - EM-888K

    • Type: Halogen-free
    • Dk: 3.2 to 3.3
    • Df: 0.0047 to 0.0062
    • Td: 390 ˚C
    • Tg: 170 to 210 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

    ITEQ Corporation - IT-958GTC

    • Type: Halogen-free, High Temp
    • Td: 400 ˚C
    • Tg: 175 ˚C
    • UL: Yes
    • Halogen Free: Yes
    • Applications: Server, Storage, Switch, Routers, Backplane
    • Cte xy: 12 to 14 ppm/˚C
    more info
    Product Image

    DuPont - LF9110R

    • Type: Halogen-free
    • UL: Yes
    • Halogen Free: Yes
    • RoHS: Yes
    • Material: Polyimide
    • Peel strength: After Lamination- 1.8 (10.0) N/mm (lb/in), After Solder- 1.6 (9.0) N/mm (lb/in)
    • Size: 610 x 914, 610 x 457, 305 x 457 mm
    more info

    How to Build Your PCB Stackup

    Many PCBs will not function properly without the right dielectric materials as these influence EMI, signal integrity, and power integrity. The other dimension to consider on many mass-produced products is cost, as material selection will be a major factor determining volume production expense. To start building your own PCB stackup, follow these steps:

    • Prioritize your specifications - All PCB laminate materials come with tradeoffs, requiring a balance among cost, dielectric properties, and thermal reliability. Start by determining the important specifications before selecting material sets and planning your PCB layer assignments.

    • Review materials datasheets - Once base materials are selected, review the material datasheets, consult a PCB design services firm, or consult a PCB manufacturer for more information on use cases and laminate thickessness for you selected material set.

    • Check with your fabricator - Before finalizing your stackup design, have the design reviewed by a competent fabrication house. Hyrid PCB stackups builds, HDI PCB materials, thin PTFE laminates, and metal-core or ceramics all require special processing during fabrication to ensure reliability.

    The typical stackup arrangement shown below illustrates the stackup design approach and layer assigments in many commercial products. In between each of the signal/plane layer groups, additional signal layers may be present as needed, often being used to route important high-speed signals or large copper pours for power routing.
