PCB Material Search

Data compiled from pcbdirectory.com

Selected Filters

Reset All
  • Type: Halogen-free
  • Filters

    Material Type

    Loss Tangent (Df)

    Apply

    Dielectric Constant (Dk)

    Apply

    Decomposition Temperature (Td)

    Apply

    Glass Transition Temperature (Tg)

    Apply

    UL Compliant

    RoHS Compliant

    Product Image

    GRACE ELECTRON - GA-886 N

    • Type: Halogen-free
    • Td: 340 to 400 ˚C
    • Tg: 190 ˚C
    • Frequency: 1 to 15 GHz
    • UL: yes
    • Halogen Free: yes
    • Arc resistance: 120 Sec
    more info
    Product Image

    Elite Material Co.,Ltd - EM-888(S)(A)

    • Type: Halogen-free
    • Dk: 3.7 to 3.8
    • Df: 0.0055 to 0.0073
    • Td: 390 ˚C
    • Tg: 170 to 210 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

    Panasonic Corporation - MEGTRON6 R-5375(N) Low Dk glass cloth

    • Type: Halogen-Free
    • Dk: 3.4
    • Df: 0.003
    • Tg: 250 ˚C
    • Frequency: 0 to 12 GHz
    • Halogen Free: yes
    • Industry application: Telecom
    more info
    Product Image

    Kingboard Holdings Limited - PI-520G

    • Type: Halogen-Free
    • Td: 340 ˚C
    • Tg: 200 ˚C
    • Frequency: 0.1 to 1 GHz
    • UL: yes
    • Lead Free: yes
    • Halogen Free: yes
    more info
    Product Image

    Elite Material Co.,Ltd - EM-370(D)

    • Type: Halogen-free
    • Dk: 4.0 to 4.1
    • Df: 0.011 to 0.015
    • Td: 385 ˚C
    • Tg: 175 to 195 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info
    Product Image

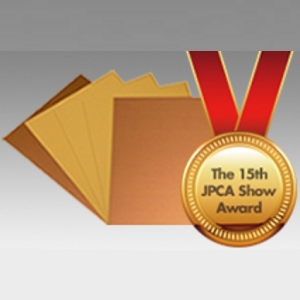

    Panasonic Corporation - MEGTRON6 R-5775 E glass cloth

    • Type: Halogen-Free
    • Dk: 3.4
    • Df: 0.004
    • Tg: 210 ˚C
    • Frequency: 0 to 12 GHz
    • Halogen Free: yes
    • Industry application: Telecom
    more info
    Product Image

    Kingboard Holdings Limited - KB-6165GC

    • Type: Halogen-Free
    • Td: 325 ˚C
    • Tg: 150 ˚C
    • Frequency: 0.1 to 1 GHz
    • UL: yes
    • Lead Free: yes
    • Halogen Free: yes
    more info
    Product Image

    ITEQ Corporation - IT-859GTA

    • Type: Halogen-free
    • Td: 380 ˚C
    • Tg: 100 ˚C
    • Lead Free: Yes
    • Applications: Notebook, Street Lamp, Automobile Lighting, LCD TV Light Bar
    • Cte xy: 9/11 ppm/˚C
    • Cte z: 45 to 250 ppm/˚C
    more info
    Product Image

    Nan Ya Plastics Corp - NPG-150DR

    • Type: Halogen-free
    • Td: 380 ˚C
    • Tg: 150 ˚C
    • UL: yes
    • Halogen Free: yes
    • Cte xy: 11, 14 ppm/˚C
    • Cte z: 30 to 40, 230 to 250 ppm/˚C
    more info
    Product Image

    Elite Material Co.,Ltd - EM-528K

    • Type: Halogen-free, High Temp
    • Dk: 3.2 to 3.5
    • Df: 0.0031 to 0.0042
    • Td: 440 ˚C
    • Tg: 220 to 250 ˚C
    • Frequency: 1 to 10 GHz
    • UL: yes
    more info

    How to Build Your PCB Stackup

    Many PCBs will not function properly without the right dielectric materials as these influence EMI, signal integrity, and power integrity. The other dimension to consider on many mass-produced products is cost, as material selection will be a major factor determining volume production expense. To start building your own PCB stackup, follow these steps:

    • Prioritize your specifications - All PCB laminate materials come with tradeoffs, requiring a balance among cost, dielectric properties, and thermal reliability. Start by determining the important specifications before selecting material sets and planning your PCB layer assignments.

    • Review materials datasheets - Once base materials are selected, review the material datasheets, consult a PCB design services firm, or consult a PCB manufacturer for more information on use cases and laminate thickessness for you selected material set.

    • Check with your fabricator - Before finalizing your stackup design, have the design reviewed by a competent fabrication house. Hyrid PCB stackups builds, HDI PCB materials, thin PTFE laminates, and metal-core or ceramics all require special processing during fabrication to ensure reliability.

    The typical stackup arrangement shown below illustrates the stackup design approach and layer assigments in many commercial products. In between each of the signal/plane layer groups, additional signal layers may be present as needed, often being used to route important high-speed signals or large copper pours for power routing.
